Pierce Arrow 30,000 lb Hydraulic Recovery Winch — Narrow Drum, Air Clutch

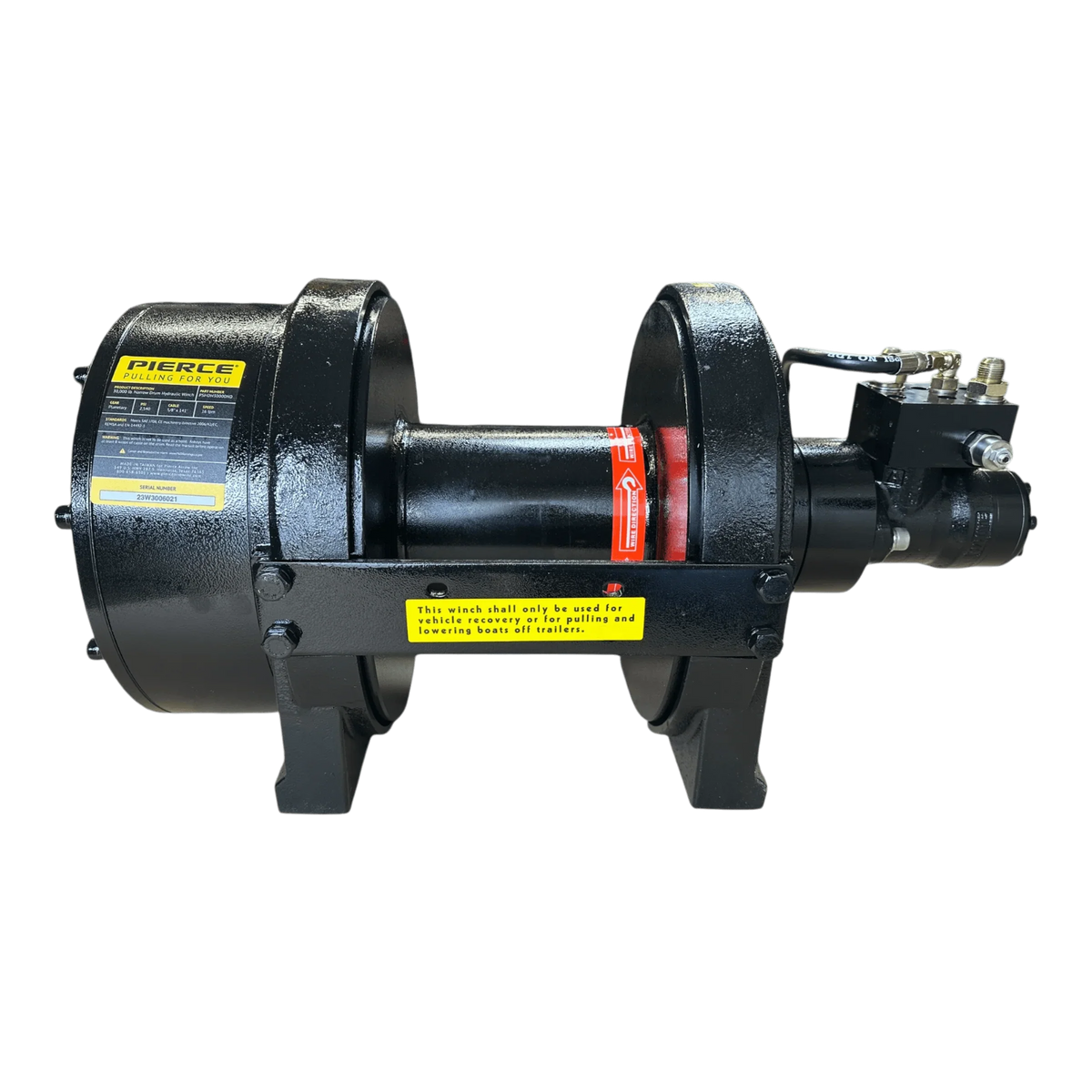

The Pierce Arrow 30,000 lb Hydraulic Recovery Winch is a heavy-wrecker-class puller — 30,000 lb. of hydraulic planetary capacity in a space-saving narrow-drum build with cab-controlled air free-spool for serious recovery rigs.
Key Features
- 30,000 lb. rated line pull
- Hydraulic drive — 9.5 in³ motor, 2,540 PSI at 15.9 GPM max
- 2-stage planetary gear, 41:1 ratio
- 16 fpm max line speed
- Air-spool clutch, cab-controlled (output shaft disengages)
- Multidisc brake · narrow-drum configuration
- Includes 5/8 in × 141 ft wire rope
Specifications
| Model | PSHDH30000ND |
| Line Pull Capacity | 30,000 lbs |
| Motor | Hydraulic, 9.5 in³/rev — 2,540 PSI @ 15.9 GPM |
| Gear System | 2-stage planetary, 41:1 |
| Line Speed | 16 ft/min |
| Clutch / Brake | Air-spool, cab-controlled · multidisc brake |
| Wire Rope | 5/8 in × 141 ft |
| Drive Type | Hydraulic |
Pricing and availability by quote — request a quote and we'll get back to you, typically within one business day.
