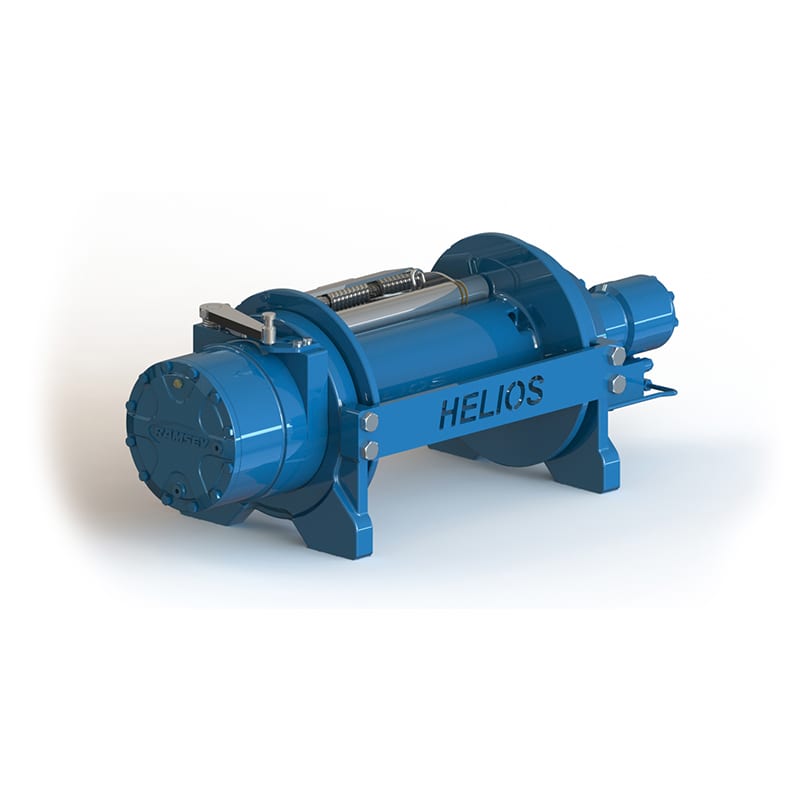

Ramsey Helios 20000 — 20,000 lb Hydraulic Planetary Winch
The Ramsey Helios 20000 is a heavy-duty hydraulic planetary winch developed to meet and exceed the demands of the industrial and towing & recovery markets, with a particular focus on the heavy-duty trailer segment. It pairs a compact, competition-equivalent footprint with a full 20,000 lb. line pull and a high-efficiency planetary gear set.
Key Features
- Compact design with competition-equivalent mounting
- Foot or mid-mount configuration
- High-efficiency planetary gear set
- Negative draft clutch (manual or air-operated)
- Spring-applied, hydraulic-released disc brake
- Integrated roller tensioner with heavy-duty torsion spring
- Over- or under-wound rope options
- Optional cable and hook installation
- Meets SAE J706 standard
- Manufactured in the USA
Specifications
| Model | Helios 20000 |
| Line Pull Capacity | 20,000 lbs (9,072 kg) |
| Line Speed | 37.5 ft/min (11.4 m/min) |
| Cable Capacity | 155 ft short drum / 260 ft standard drum |
| Gear System | Planetary |
| Drive Type | Hydraulic |
| Standard | SAE J706 |
| Origin | Made in USA |
Pricing and availability by quote — request a quote and we'll get back to you, typically within one business day.
