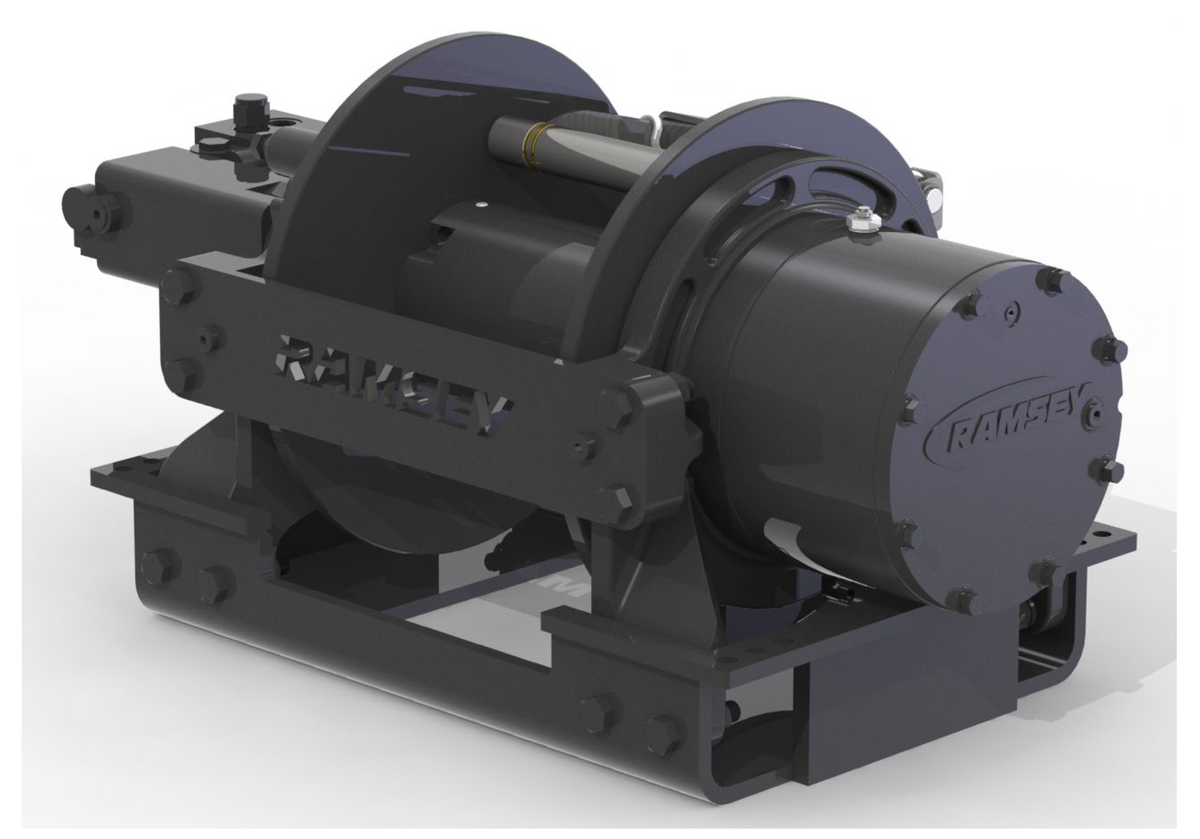

Ramsey Helios 30000 — 30,000 lb Hydraulic Planetary Winch
The Ramsey Helios 30000 is a heavy-duty hydraulic planetary winch developed for industrial, towing, and recovery work — particularly the heavy-duty trailer market — delivering a full 30,000 lb. line pull. Available in standard and low-mount frame configurations, with wire rope approval and select synthetic-rope models.
Key Features
- 30,000 lb. line pull capacity
- High-efficiency planetary gear set
- Foot or mid-mount configuration; low-mount frame option
- Negative draft clutch (manual or air-operated)
- Spring-applied, hydraulic-released disc brake
- Integrated roller tensioner
- Over- or under-wound rope options
- Manufactured in the USA
Applications
- Heavy-duty trailer
- Specialty vehicle
- Towing & recovery
- Industrial
Specifications
| Model | Helios 30000 |
| Line Pull Capacity | 30,000 lbs (13,608 kg) |
| Line Speed | 20 ft/min standard (up to 42–84 ft/min low-mount) |
| Cable Capacity | 108 ft standard / 259 ft low-mount |
| Gear System | Planetary |
| Drive Type | Hydraulic |
| Origin | Made in USA |
Pricing and availability by quote — request a quote and we'll get back to you, typically within one business day.
