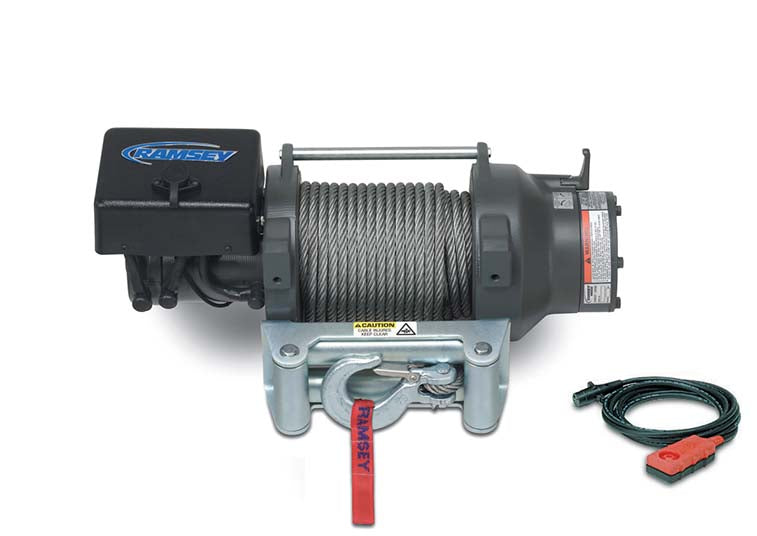

Ramsey Patriot 16500 — 16,500 lb 12V Electric Planetary Winch
The Ramsey Patriot 16500 is a 12V DC electric winch built for fast line speed and heavy-duty performance, delivering 16,500 lb. line pull through a three-stage planetary gear system with a 5.5 HP series-wound motor. Comes standard with 90 ft of galvanized wire rope.
Key Features
- 16,500 lb. line pull capacity
- 5.5 HP 12V DC series-wound reversible motor
- Three-stage planetary gear system (298:1)
- Spring-loaded pull/rotate clutch for free spooling
- Automatic load-holding brake
- Weather-resistant solenoid assembly
- Wireless remote or 12 ft pendant control
- Hawse fairlead standard
Specifications
| Model | Patriot 16500 |
| Line Pull Capacity | 16,500 lbs (7,484 kg) |
| Motor | 5.5 HP, 12V DC, series-wound, reversible |
| Cable Capacity | 90 ft (27.4 m) |
| Gear System | Three-stage planetary, 298:1 |
| Voltage | 12 VDC |
| Drive Type | Electric |
Pricing and availability by quote — request a quote and we'll get back to you, typically within one business day.
