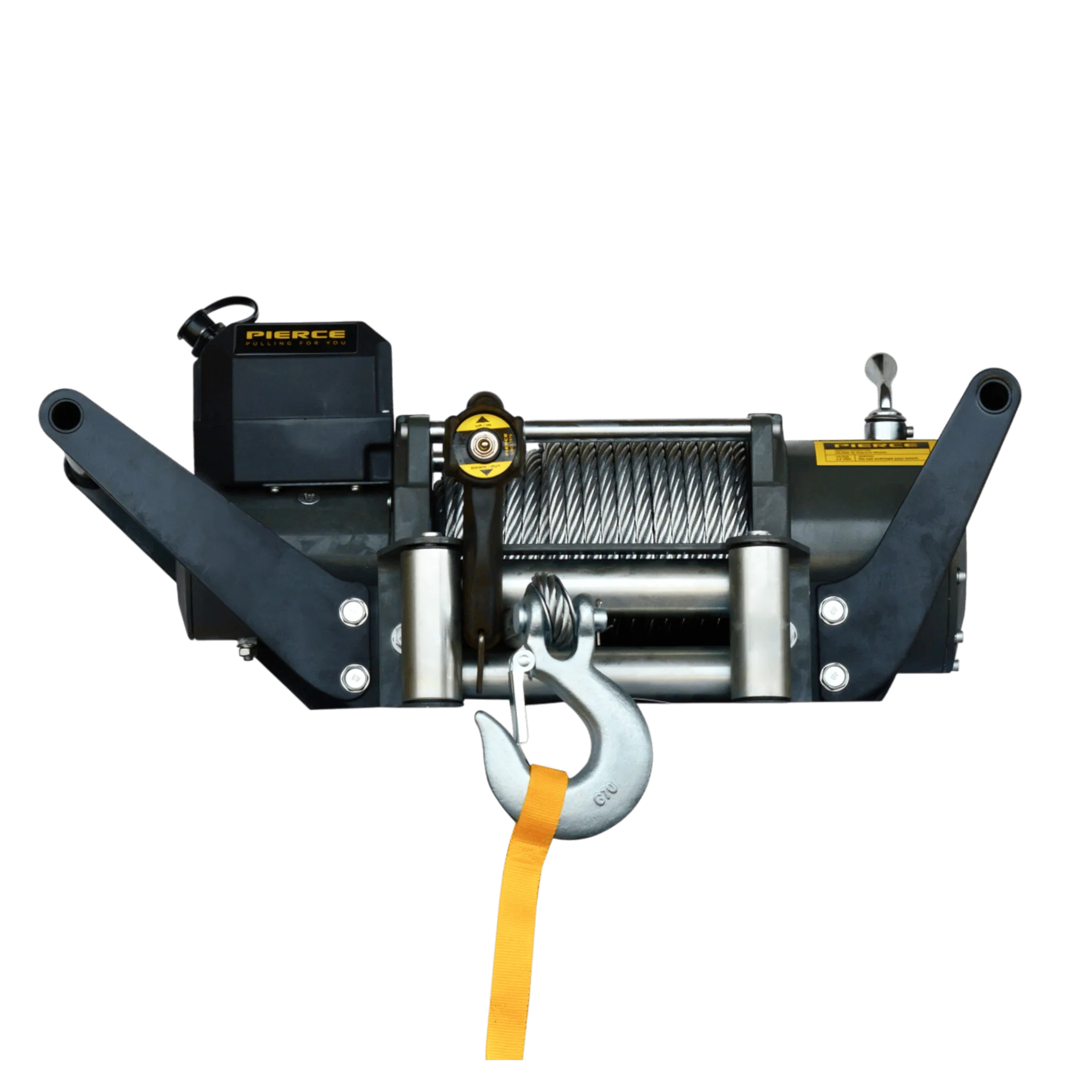

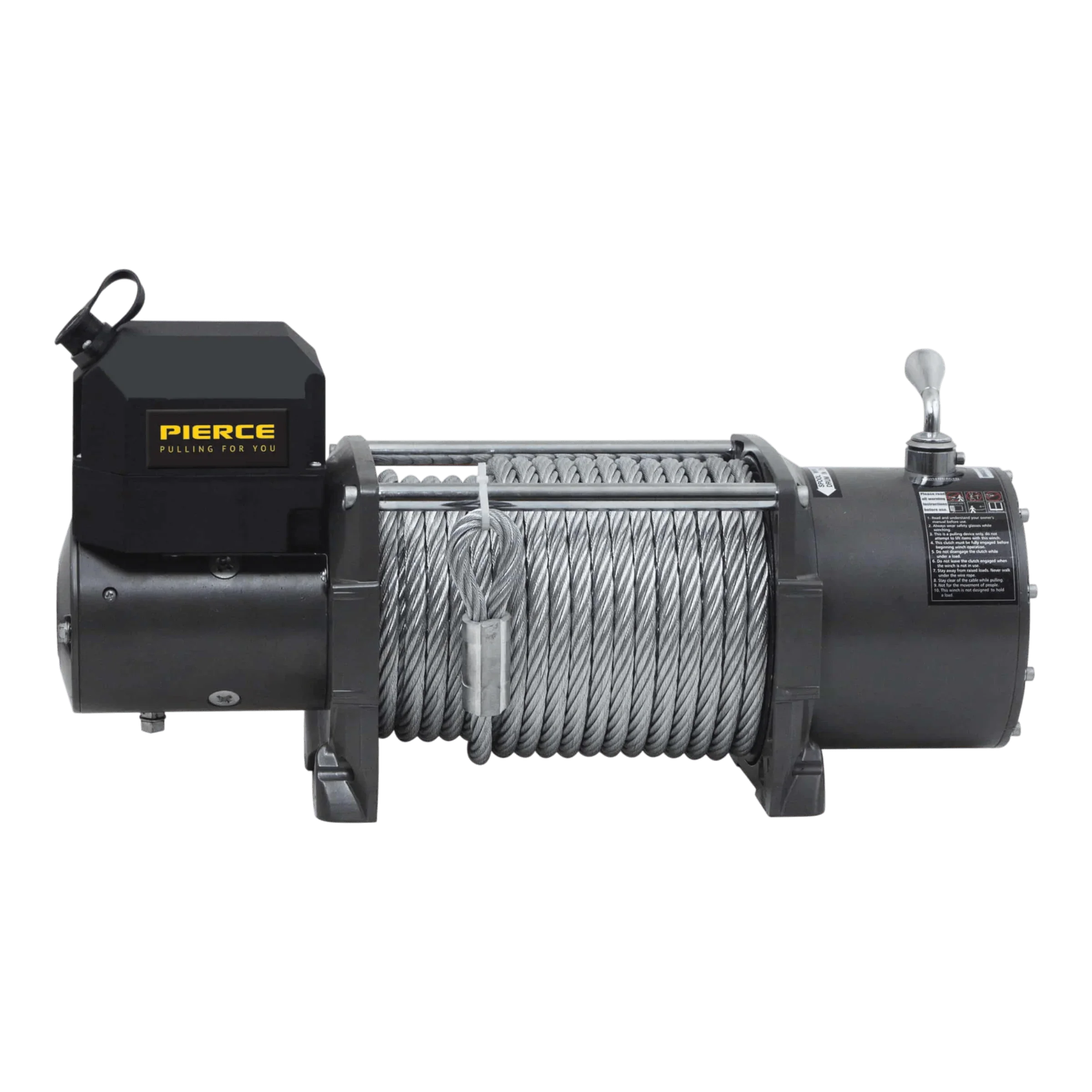

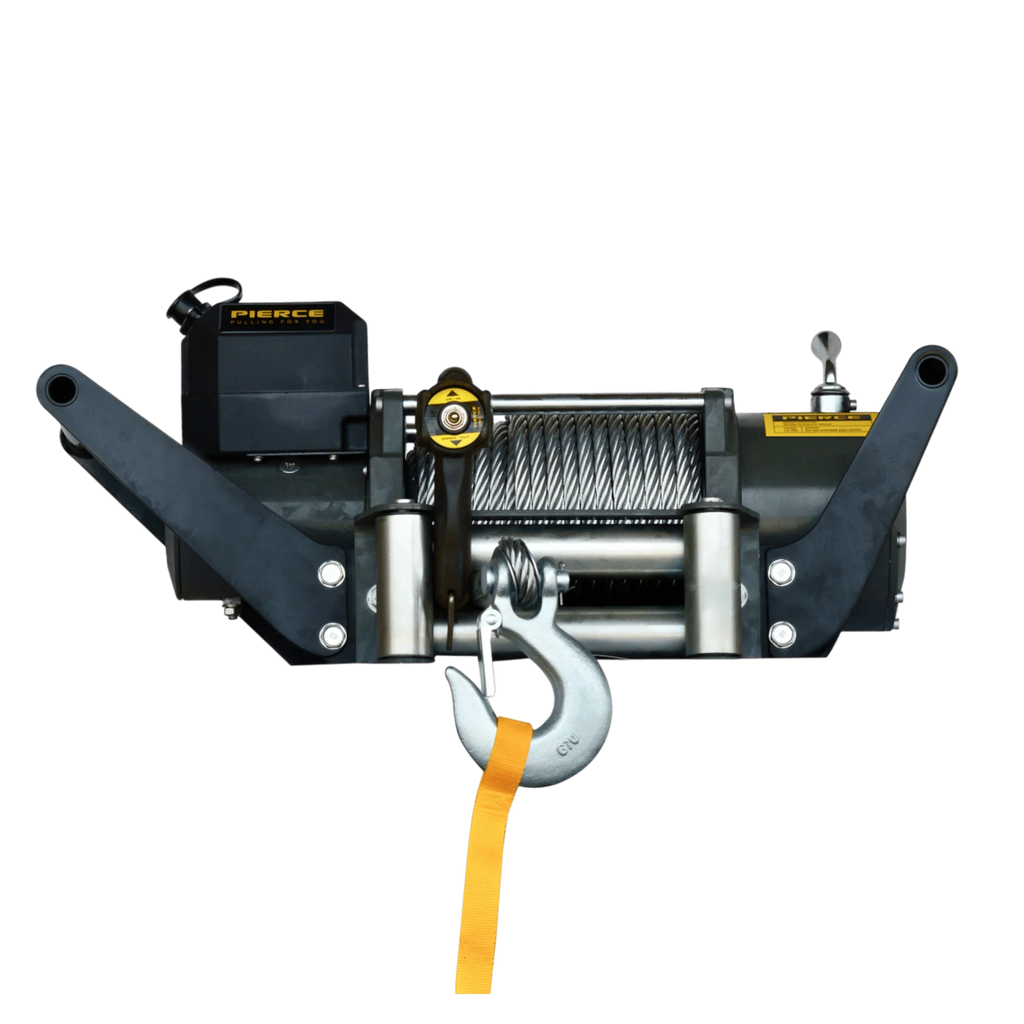

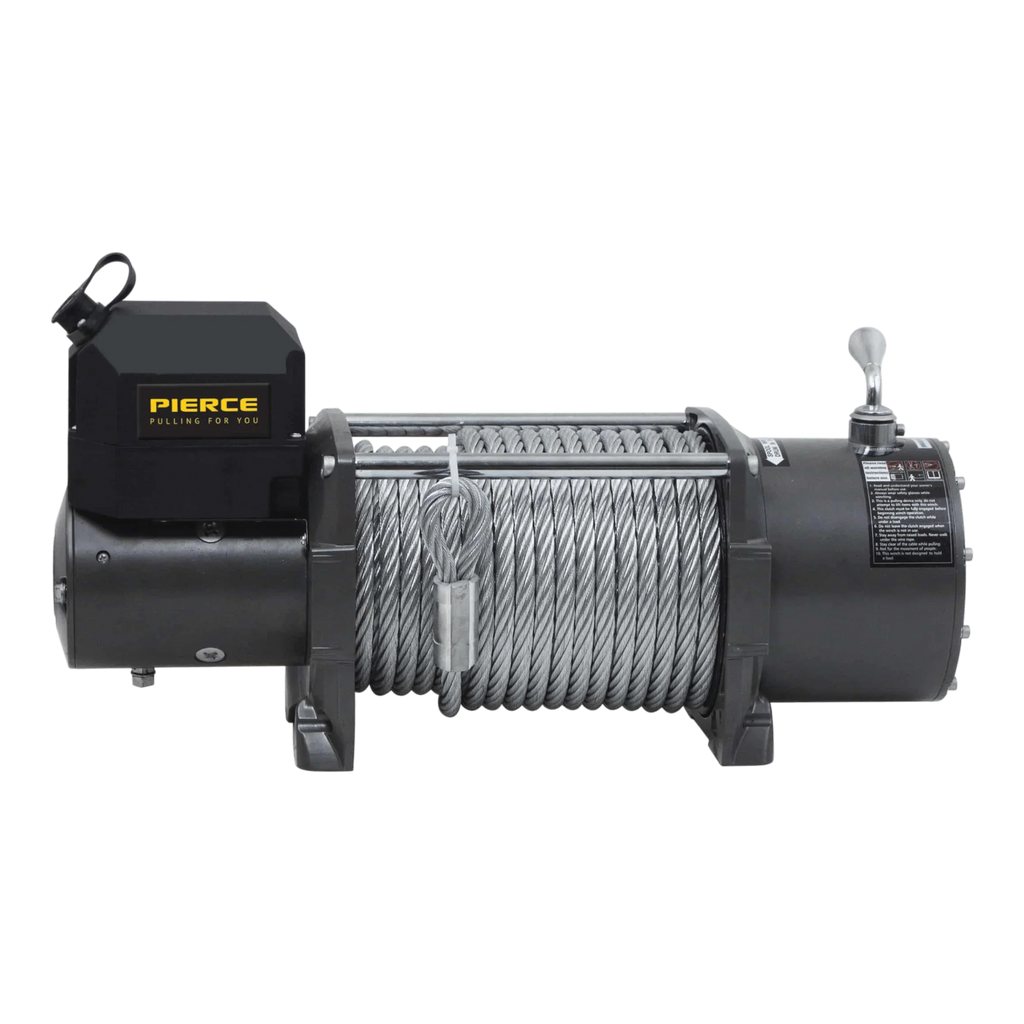

Gritforce PS20000 — 20,000 lb 12V Planetary Recovery Winch

The Gritforce PS20000 is the maximum 12V planetary recovery winch — 20,000 lb pulling capacity from a 6.8 HP motor with 1/2 in × 72 ft of heavy wire rope. Built for heavy vehicle recovery, oversized equipment trailers, and any 12V job where 12K runs short.

• 20,000 lb rated pulling capacity — max 12V in the line
• 12V DC, 6.8 HP motor — 520 A peak draw
• 3-stage planetary gear, 420:1 ratio
• 20.4 fpm max line speed
• Automatic built-in drum brake — holds load, no rollback
• Sliding ring-gear clutch — manual free-spool at the winch
• Cast-metal construction
• Includes 1/2 in × 72 ft wire rope

Electrical note: the 520 A peak draw exceeds a stock system under load. Plan a 100 A+ alternator, dual deep-cycle (or high-CCA AGM) batteries, and 2-gauge feed. Have a certified installer verify capacity before mounting.

SKU: PS20000

⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
